Product Introduction
     Size Range:

      DN 25~250mm   NPS 1”-10”  (Wafer)

      DN 25~500mm   NPS 1”-20”  (Flange)

     Press. Rate:

      PN 10/16/25/40/63

      ANSI 150/300/600

     Temp. Range

      Metal Seat        -29...+450

      Resilient Seat    -29...+150

     Seal Tightness:

      Metal Seat        Class IV

      Resilient Seat    Class VI

     Body Material:

      Carbon Steel, Stainless Steel, Special Alloy

     Ball/Stem Material:
      Stainless Steel, Special Alloy
     Seat Material:

      Stainless Steel+STL, PCTFE,PEEK (Flange)

      Stainless Steel+STL (Wafer)

     Face to Face:

      ISA S75.04, IEC/DIN 534-3-2 (Flange)

      Factory Standard (Wafer)

     Flange Standard:

      GB/T 9113.1, JB/T 79.1, HG 20592,

      ASME B 16.34, ISO 7005 (Other drilling on request)

     Appliactions:

      Pulp & Paper,Water Treatment,Food & Beverage,

      Fine Chemical,Power Plant,Steel Industry

Introduction:

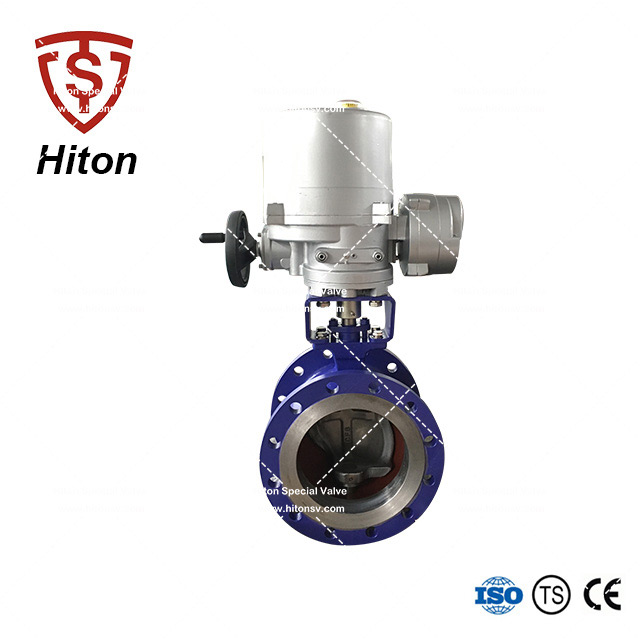

The Hiton VQ series Metal Seat Segment Ball Control Valve is primarily designed for flow control, and it can also be used for shut-off

operation. The notched port on the segment ball contributes to strong shear stress to cut through media with fibers

and particles. Consequently, this Segment Ball Valve is a good general control valve (equal percentage flow character)

for most pulp and paper process applications, or similar flow contains fibers and particles.



Features:

1.    Body

a)     Integral body design offers greater rigidity against fluctuating pipe loads.

b)     Eliminates the leak path associated with two piece body designs.

c)      Both wafer and flange connection are available.



2.    Core

a)     Specially designed V-notch ball provides strong cutting stress and tight sealing.

b)     Hard chromium, nitriding, and HCOF treatments are all available for the ball surface treatment, improving hardness,

        abrasion resistance, fatigue resistance, corrosion resistance and performance under high temperature.

c)     Well ground notched ball surface ensures small operating torque and tight seal, especially for metal seated

        segment valve.


3.    Seat

a)     For valve rated under class 150, retainer is casted on valve body to eliminate any possible space between seat

        ring and body for residue accumulation. Consequently, this ensures perfect seal

b)     Specialized spring design decreases valve torque while providing force for tight sealing.

c)     Pressure energized seat design offers excellent sealing even at very low differential pressures.


4.    Stem

a)      The stem is finely ground to match the actuator excellently, which prevents rocking motion and potential failure

         of the segmented valve.
